NSF-ISR

PharmaSil Sanitary Hose



ST07 & ST0L

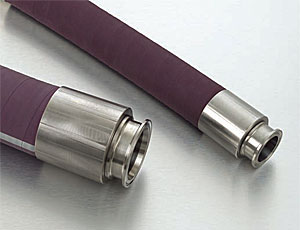

Rubber Covered Smooth Bore PTFE Hose



ST07 ST0L Rubber Covered Smooth Bore PTFE HoseFeatures:
• Excellent flexibility
• Excellent chemical resistance
• Steam cleanable (SIP)
• Rated for continuous steam
• Detergent or caustic cleanable (CIP)
• Imparts no taste or odor
• Available in bulk or assemblies
• Non-stick, with white, green, blue, purple, and gray covers
(STOW – White, STGR – Green, STBL – Blue, ST07 – Purple, ST08 – Gray)
• Temperature range: -40°F to 300°F (-40°C to 149°C)

Applications:
• Vacuum and pump applications
• Pharmaceutical processing
• Biotechnology
• Bulk transfer
• Load cells

Approvals:
• Meets USP Class VI, FDA, and USDA requirements



  • Metric Sizes
  • Imperial Sizes
White Black - Hose ID mm Maximum Minimum Burst Vacuum Min Bend Weight per
  Conductive   Working Pressure Pressure Rating mm Radius mm Metre in grams
      bar at 22 °C bar at 22 °C
ST0708 ST0L08 13 34 138 759 64 536
ST0712 ST0L12 19 34 138 759 76 819
ST0716 ST0L16 25 28 124 759 102 893
ST0720 ST0L20 32 26 103 759 178 1385
ST0724 ST0L24 38 26 103 759 229 1608
ST0732 ST0L32 51 21 83 759 267 1980
ST0740 ST0L40 64 14 69 759 406 2502
ST0748 ST0L48 76 14 69 759 457 3008
ST0764 ST0L64 102 10 52 759 572 4214
White Black - Hose ID, IN Maximum Minimum Burst Vacuum Min Bend Weight per
  Conductive   Working Pressure Pressure Rating, IN Radius, IN Foot, LB.
      psi at 72 °F psi at 72 °F
ST0708 ST0L08 0.50 500 2000 29.9 2.50 0.36
ST0712 ST0L12 0.75 500 2000 29.9 3.00 0.55
ST0716 ST0L16 1.00 400 1800 29.9 4.00 0.60
ST0720 ST0L20 1.25 375 1500 29.9 7.00 0.93
ST0724 ST0L24 1.50 375 1500 29.9 9.00 1.08
ST0732 ST0L32 2.00 300 1200 29.9 10.50 1.33
ST0740 ST0L40 2.50 200 1000 29.9 16.00 1.68
ST0748 ST0L48 3.00 200 1000 29.9 18.00 2.02
ST0764 ST0L64 4.00 150 750 29.9 22.50 2.83
