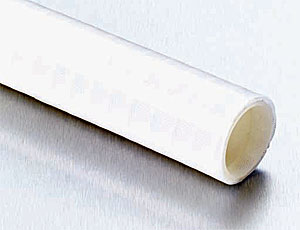

PharmaSil Sanitary Hose



SF800HP

Platinum-Cured Polyester Monofilament
Reinforced USP Class VI Silicone Hose


SF800HPFeatures:
• Excellent flexibility
• Sterilizable
• Autoclavable
• Imparts no taste or odor
• Available in bulk or assemblies
• Pigmented outer covers available
• Available in 10 ft lengths
• Temperature range: -80°F to 500°F (-62°C to 260°C)

Applications:
• Some vacuum pump applications
• Pharmaceutical processing
• Biotechnology
• Bulk transfer
• Load cells

Approvals:
• Meets USP Class VI, FDA, and USDA requirements


  • Metric Sizes
  • Imperial Sizes
Part Number Hose I.D mm Minimum Burst Vacuum Min Bend
    Pressure Rating mm Radius mm
    bar at 20 °C
SH8008 12.70 * * *
SH8012 19.05 41 737 44
SH8016 25.40 41 660 64
SH8020 31.75 41 660 83
SH8022 35.05 41 660 89
SH8024 38.10 41 660 102
SH8026 41.40 40 559 114
SH8028 44.45 38 508 127
SH8032 50.80 36 457 140
SH8036 57.15 36 457 146
SH8040 63.50 34 457 152
SH8044 69.85 * * *
SH8048 76.20 * * *
SH8056 88.90 * * *
SH8064 101.60 * * *
* Details on request
Part Number Hose ID, IN. Minimum Burst Vacuum Min Bend
    Pressure Rating, IN. Radius, IN
    psi at 68 °F
SH8008 0.50 * * *
SH8012 0.75 600 29 1.75
SH8016 1.00 600 26 2.50
SH8020 1.25 600 26 3.25
SH8022 1.38 600 26 3.50
SH8024 1.50 600 26 4.00
SH8026 1.63 575 22 4.50
SH8028 1.75 550 20 5.00
SH8032 2.00 525 18 5.50
SH8036 2.25 525 18 5.75
SH8040 2.50 500 18 6.00
SH8044 2.75 * * *
SH8048 3.00 * * *
SH8056 3.50 * * *
SH8064 4.00 * * *
* Details on request
